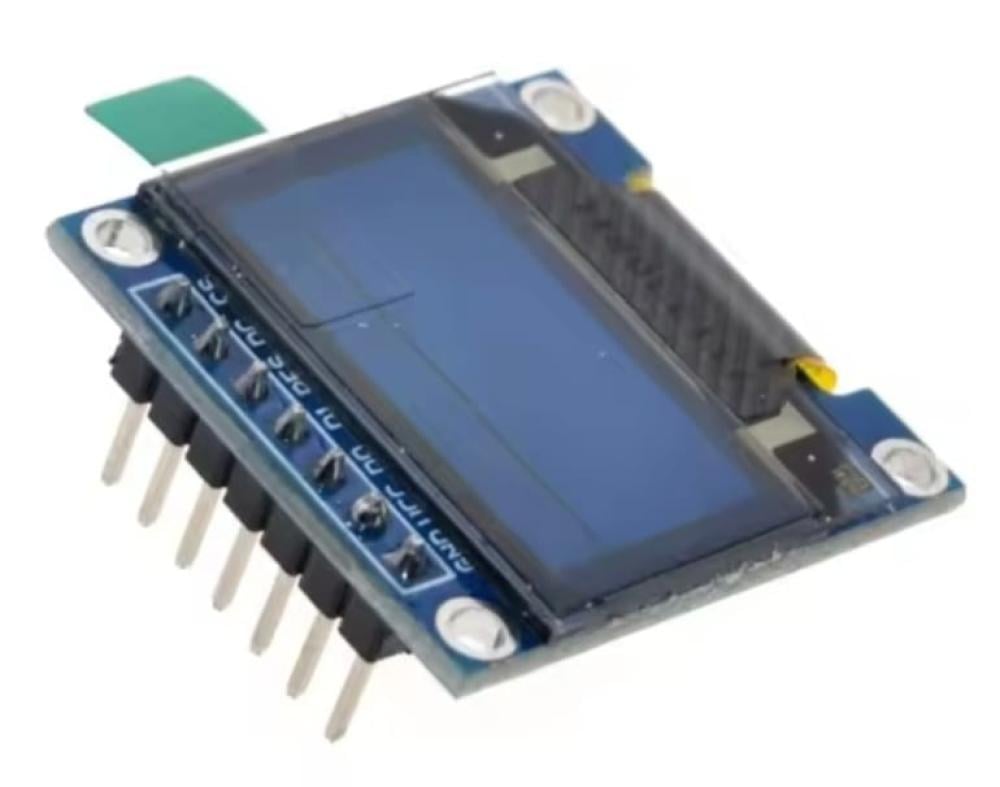

OLED LCD Module SPI Yellow blue double color 128X64 OLED 7Pin Driver Chip SSD1306 for Arduino 0.96” Type K
40.25 SAR
Description
- 1, high resolution: 128X64 (and 12864LCD the same resolution, but the OLED screen more pixels per unit area)
- 2, super wide viewing angle: more than 160 ° (maximum viewing angle display a screen)3, ultra-low power consumption: normal display 0.06W (far below the TFT display)
- 4, wide supply range: DC 3V-5V (without any changes, directly compatible with common 3.3V and 5V power supply system)
- 5, industrial grade: Operating temperature range -30 C ~ 70 C
- 6, the ultra-small size: (length) 27.8MM * (W) 27.3MM * (thickness) 4.3MM
- 7, support for multiple operating modes: 3-wire SPI, 4 wire SPI, IIC
- 8, with chip select CS signal, you can achieve multiple SPI or IIC device on the same bus work
- 9, compatible with 3.3V and 5V control chip I / O level (without any set, directly compatible)
- 10, OLED screen, internal drive chip: SSD1306
- Pin Description:
- GND: Power ground
- VCC: 3.3V or 5V power supply
- D0: CLK Clock
- D1: MOSI data
- RST: Reset
- DC: data / command
- CS: Chip select signal
- the client application case:
- 1, smart watches
- 2, smart car camera image displayed in real time
- 3, the battery management apparatus
- 4, IPC handle
- 5, MP3
- 6, feature phones
- 7, portable medical instrument
- the module with information:
- 1, C51 single-chip display routines
- 2, STM32 display routines
- 3, display routines
- 4, Freescale XS128 real track display program
- 5, Freescale K60 display routines
- 6, OLED module specification
- 7, OLED screen Data Sheet
