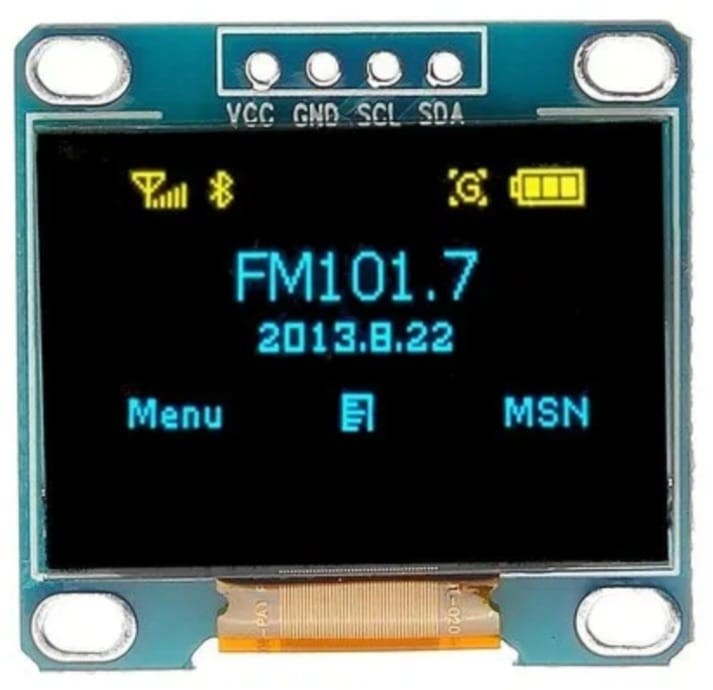

OLED Display Module SPI For Arduino 0.96 Inch Yellow blue double color 128X64 7Pin Driver Chip SSD1306 Type (A)
Product description
Condition:New
is_customized:Yes
Type:LED Modules
Application:LED Modules
high resolution: 128X64 (and 12864LCD the same resolution, but the OLED screen more pixels per unit area)
super wide viewing angle: more than 160 deg; (maximum viewing angle display a screen)3, ultra-low power consumption: normal display 0.06W (far below the TFT display)
wide supply range: DC 3V-5V (without any changes, directly compatible with common 3.3V and 5V power supply system)
industrial grade: Operating temperature range -30 C ~ 70 C
the ultra-small size: (length) 27.8MM * (W) 27.3MM * (thickness) 4.3MM

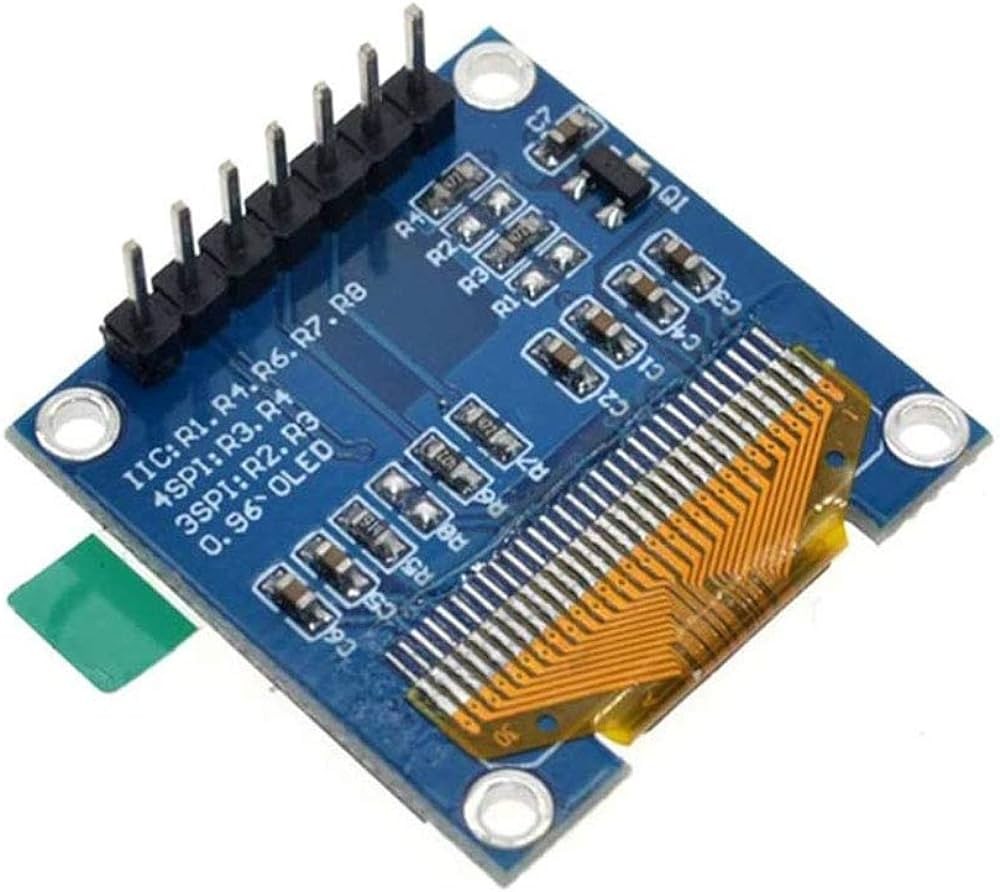

support for multiple operating modes: 3-wire SPI, 4 wire SPI, IIC
with chip select CS signal, you can achieve multiple SPI or IIC device on the same bus work
compatible with 3.3V and 5V control chip I / O level (without any set, directly compatible)
OLED screen, internal drive chip: SSD1306

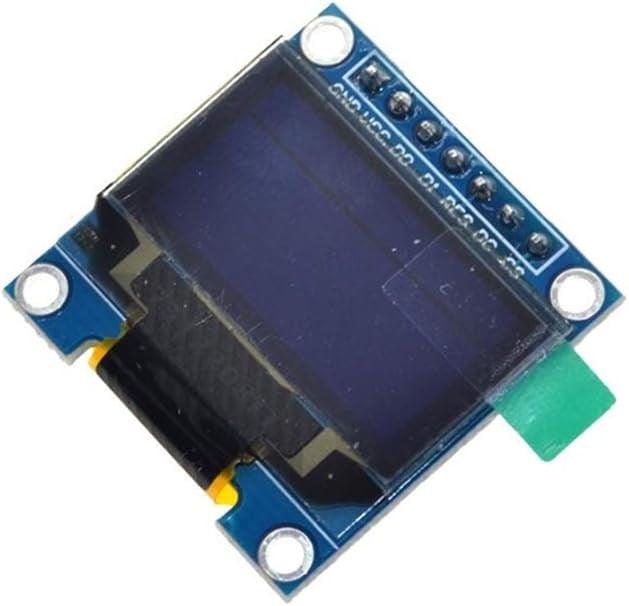

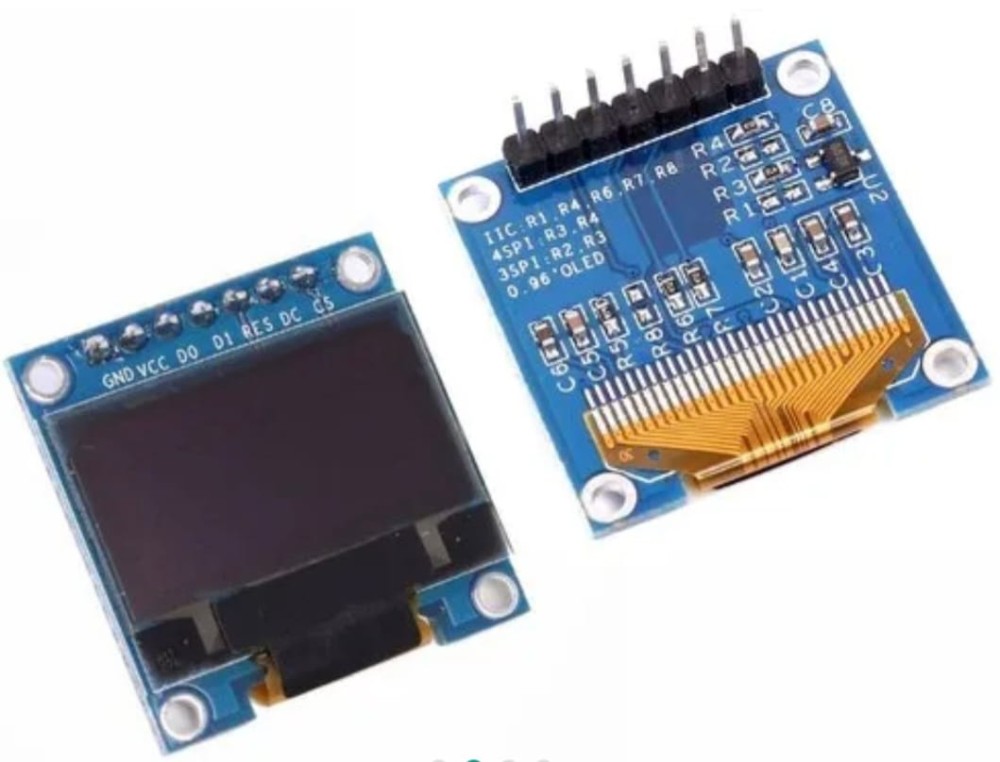

Pin Description:
GND: Power ground
VCC: 3.3V or 5V power supply
D0: CLK Clock
D1: MOSI data
RST: Reset
DC: data / command
CS: Chip select signal
the client application case:
smart watches
smart car camera image displayed in real time
the battery management apparatus
IPC handle
MP3
feature phones
portable medical instrument
the module with information:
C51 single-chip display routines
STM32 display routines
